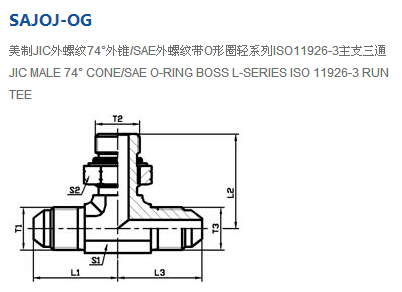

點擊圖片查看原圖
產品技術參數：
| 代號 PART NO. | 螺紋 THREAD | 尺寸 DIMENSIONS | 重量 | 工作壓力MPa | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| T1 | T2 | T3 | L1 | L2 | L3 | S1 | S2 | |||
| SAJOJ-04OG | 7/16＂X20 | 7/16＂X20 | 7/16＂X20 | 22.6 | 26.2 | 22.6 | 11 | 17 | 42 | 31.5 |
| SAJOJ-05OG | 1/2＂X20 | 1/2＂X20 | 1/2＂X20 | 24.1 | 28.7 | 24.1 | 14 | 17 | 56 | |
| SAJOJ-06OG | 9/16＂X18 | 9/16＂X18 | 9/16＂X18 | 26.9 | 31.8 | 26.9 | 14 | 19 | 74 | |
| SAJOJ-08OG | 3/4＂X16 | 3/4＂X16 | 3/4＂X16 | 31.8 | 36.8 | 31.8 | 19 | 24 | 157 | 31 |
| SAJOJ-10OG | 7/8＂X14 | 7/8＂X14 | 7/8＂X14 | 36.8 | 43.2 | 36.8 | 22 | 27 | 227 | 24 |
| SAJOJ-12OG | 1.1/16＂X12 | 1.1/16＂X12 | 1.1/16＂X12 | 42.2 | 49.3 | 42.2 | 27 | 32 | 373 | |
| SAJOJ-16OG | 1.5/16＂X12 | 1.5/16＂X12 | 1.5/16＂X12 | 46 | 52.1 | 46 | 33 | 41 | 569 | 20 |
| SAJOJ-20OG | 1.5/8＂X12 | 1.5/8＂X12 | 1.5/8＂X12 | 52.3 | 57.2 | 52.3 | 41 | 50 | 922 | 16 |
| SAJOJ-24OG | 1.7/8＂X12 | 1.7/8＂X12 | 1.7/8＂X12 | 59.2 | 60.7 | 59.2 | 48 | 55 | 1236 | 14 |
