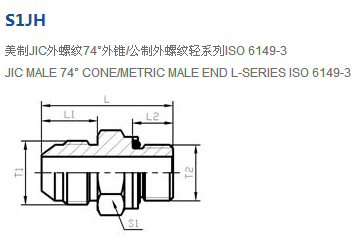

產品技術參數：
| 代號 PART NO. | 螺紋 THREAD | 尺寸 DIMENSIONS | 重量 | 工作壓力MPa | ||||
|---|---|---|---|---|---|---|---|---|
| T1 | T2 | L1 | L2 | L | S1 | |||
| S1JH-04-10 | 7/16＂X20 | M10X1 | 14 | 8.5 | 31 | 17 | 21 | 34.5 |
| S1JH-05-12 | 1/2＂X20 | M12X1.5 | 14 | 11 | 33.5 | 19 | 30 | |
| S1JH-06-14 | 9/16＂X18 | M14X1.5 | 14.1 | 11 | 33.5 | 19 | 36 | |
| S1JH-06-16 | 9/16＂X18 | M16X1.5 | 14.1 | 11.5 | 35.1 | 22 | 52 | 31.5 |
| S1JH-08-16 | 3/4＂X16 | M16X1.5 | 16.7 | 11.5 | 37.6 | 22 | 67 | |
| S1JH-08-18 | 3/4＂X16 | M18X1.5 | 16.7 | 12.5 | 39.1 | 24 | 74 | |
| S1JH-10-18 | 7/8＂X14 | M18X1.5 | 19.3 | 12.5 | 41.7 | 24 | 88 | |
| S1JH-10-22 | 7/8＂X14 | M22X1.5 | 19.3 | 13 | 42.9 | 27 | 108 | |
| S1JH-12-22 | 1.1/16＂X12 | M22X1.5 | 21.9 | 13 | 45.5 | 27 | 160 | |
| S1JH-12-27 | 1.1/16＂X12 | M27X2 | 21.9 | 16 | 49 | 32 | 180 | 20 |
